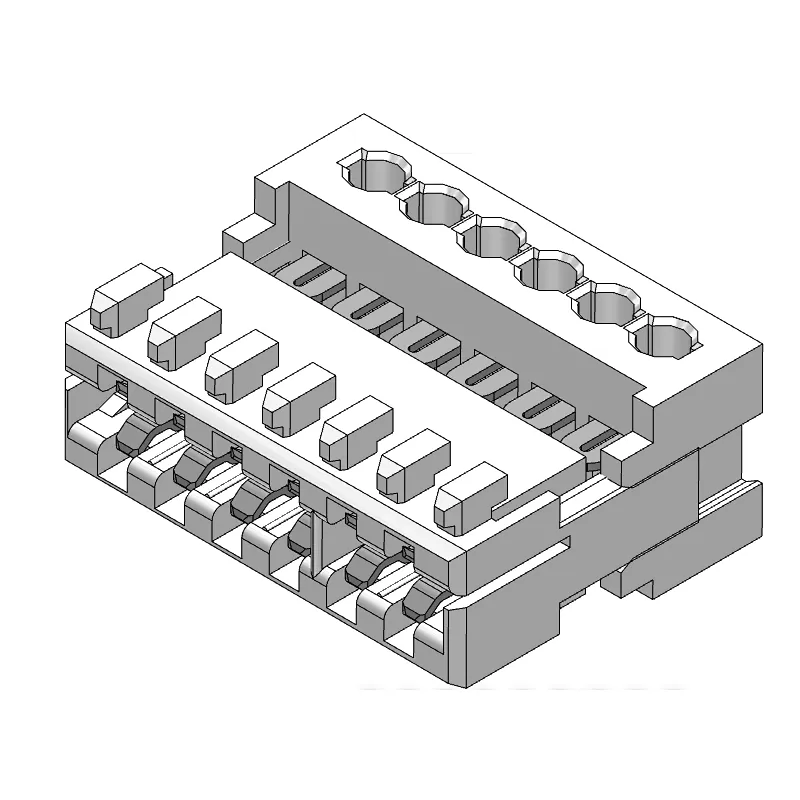

Rastlink 2.50mm Single Row Female connector
Rastlink 2.50mm Single Row Female connector

Rastlink 2.50mm Single Row Female connector

Model NO.
CSGA105-0697A001A4NB
Rastlink 2.50mm Single Row Female connector
Quantity:
  • Specification Code:CSGA105-0697A001A4NB
    Pitch2.50mmRated Current4 A/Pin (Tamb 60 °C)
    Pin2~15PinRated Current2 A/Pin (Tamb 100 °C)
    Insulating bodyPBT（-40℃~130℃）,white（Optional）Rated Voltage32V AC/DC
    Contact MaterialPhosphor bronzeDielectric Withstanding Voltage500V AC Lasts 1 minute
    PlatingUnderlying nickel,Tinned surface（Optional）Contact Resistance10mΩ
    Insertion force/contact≤ 4 N/PinInsulation Resistance1000Ω
    Withdrawal force/contact≥ 0.5 N/PinOperating Temperature-40℃~130℃
    Mating Cycles100Applicable wireAWG22~AWG24
