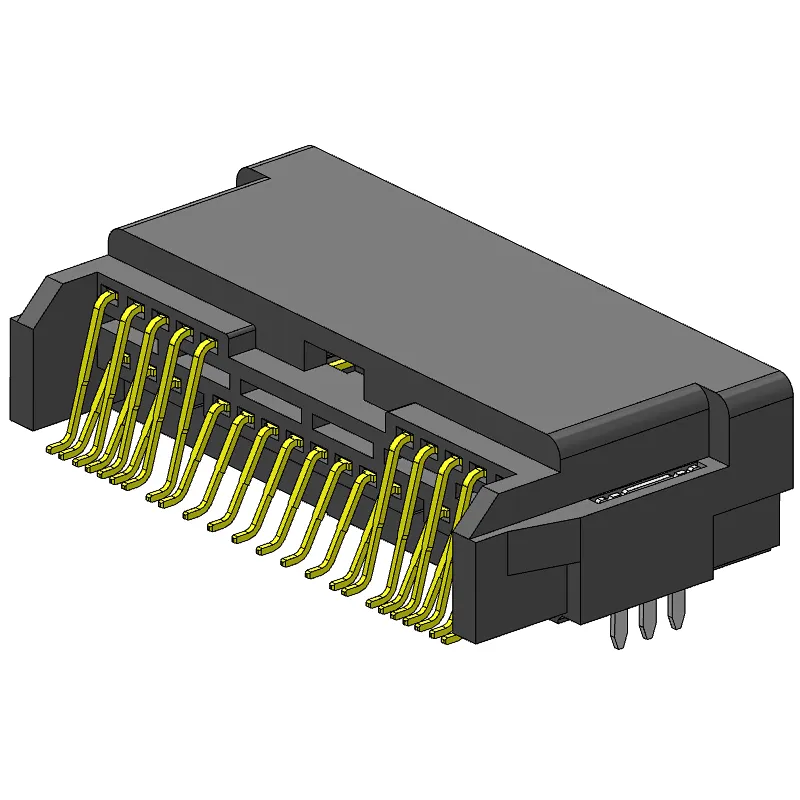

Irregular pitch male chassis double row 24Pin frame port connector parallel to the PCB (SMT)
Irregular pitch male chassis double row 24Pin frame port connector parallel to the PCB (SMT)

Irregular pitch male chassis double row 24Pin frame port connector parallel to the PCB (SMT)

Model NO.
GZZD201-24N3A001C1JH
Irregular Pin pitch male chassis double row total height 9.70mm 24P Tinned 180 degree curved pin Frame port connector parallel to PCB (SMT)
Quantity:
  • Specification Code:GZZD201-24N3A001C1JH
    180 degree bend angle connector　
    Number of rows double row
    Number of PIN 4/8/12/16/20/24/32/40Pin
    Insulation material LCP (high temperature resistant)
    Fire rating UL 94-V0
    Contact material copper alloy
    Plating Nickel plated bottom layer, tin surface layer
    Rated current 3A/Pin
    Rated voltage 250V AC
    Insulation impedance 100MΩ min.
    Contact impedance10mΩ max.
    Mechanical life20 times
    Welding temperature260±5℃/5~15 S
    Operating temperature -40℃~105℃
    Humidity level 1 level
    Mounting Parallel to the PCB (SMT)
