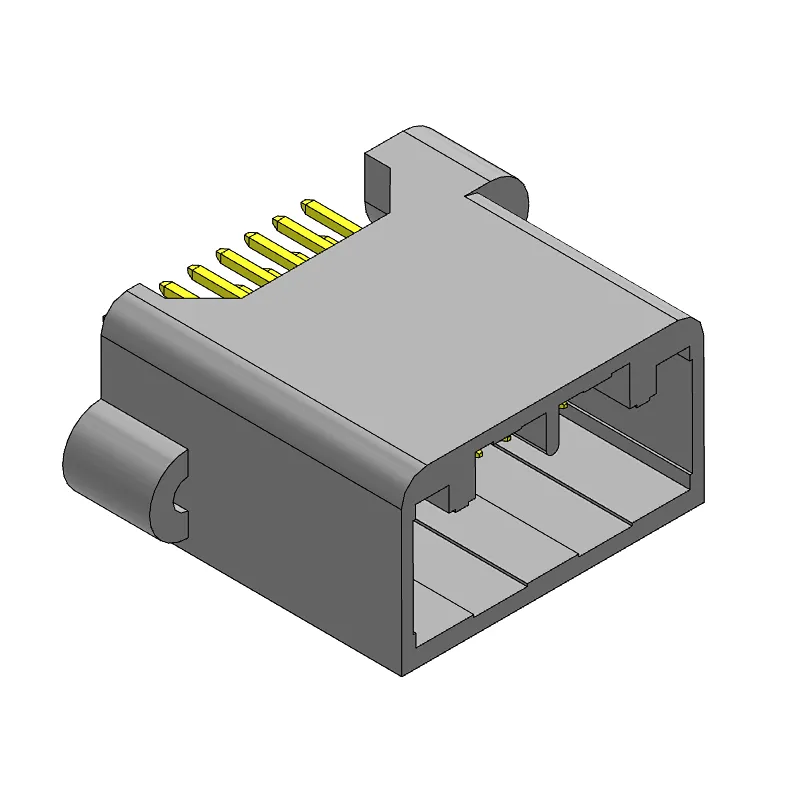

Pitch 2.20mm male chassis double row 2*8Pin frame port connector vertical PCB board (through hole)
Pitch 2.20mm male chassis double row 2*8Pin frame port connector vertical PCB board (through hole)

Pitch 2.20mm male chassis double row 2*8Pin frame port connector vertical PCB board (through hole)

Model NO.
GPZA221-0801A001J6JA
Pin pitch 2.20mm male chassis double row total height 23.50mm 2*8P tinned straight pin frame port connector perpendicular to PCB board (through hole)
Quantity:
  • Specification Code:GPZA221-0801A001J6JA
    Right angle connector　
    Pitch 2.20mm
    Number of rows double row
    Number of PIN 16Pin
    Insulation material Nylon (high temperature resistant), fire rating: UL 94-V0
    Contact material copper alloy
    Plating Nickel plated bottom layer, tin surface layer
    Rated current 3A/Pin
    Rated voltage 250V AC
    Withstand voltage 1000V AC for 1 minute
    Insulation impedance 1000MΩ min.
    Contact impedance10mΩ Max.
    Mechanical life100 times
    Welding temperature245±3℃/3~5 S
    Operating temperature -40℃~105℃
    Humidity level 1 level
    Mounting Perpendicular to PCB board (through-hole)
