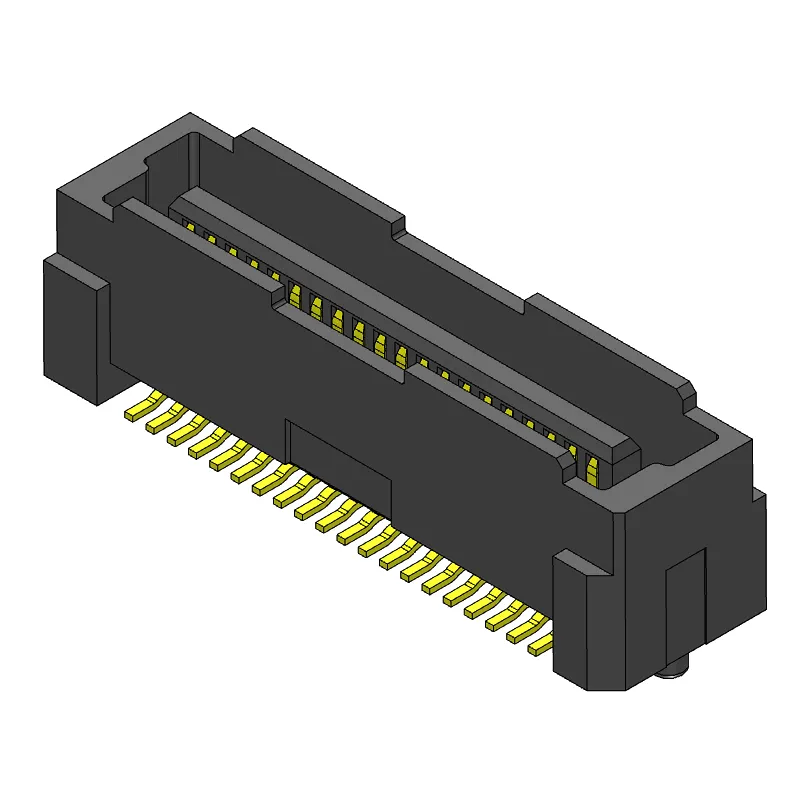

Pitch 0.80mm male chassis dual row 2*20Pin board-to-board connector vertical PCB (SMT)
Pitch 0.80mm male chassis dual row 2*20Pin board-to-board connector vertical PCB (SMT)

Pitch 0.80mm male chassis dual row 2*20Pin board-to-board connector vertical PCB (SMT)

Model NO.
GBBC252-2002B001C5WF
Pin pitch 0.80mm male chassis double row total height 6.50mm with positioning post 2*20P contact end gold plated solder board end tin plated 90 degree curved pin Board to board connector perpendicular to PCB board (SMT)
Quantity:
  • Specification Code:GBBC252-2002B001C5WF
    Board To Board Connector - Male End　
    Pitch 0.80mm
    Number of rows Double row
    Number of PIN 40Pin
    Insulation material LCP (high temperature resistant)
    Fire rating UL 94-V0
    Contact material copper alloy
    Plating Nickel plating on the bottom, gold on the contact end of the surface, tin on the contact end
    Rated current 0.5A/Pin
    Rated voltage 50V AC/DC
    Withstand voltage 500V AC for 1 minute
    Insulation impedance 1000MΩ min.
    Contact impedance 30mΩ max.
    Mechanical life 100 times
    Welding temperature260±5℃/5~15 S
    Operating temperature -40℃~105℃
    Humidity level 1 level
    Mounting Perpendicular to the PCB (SMT)
    Combined stacking height 11.00mm
    Effective contact length 1.00mm
