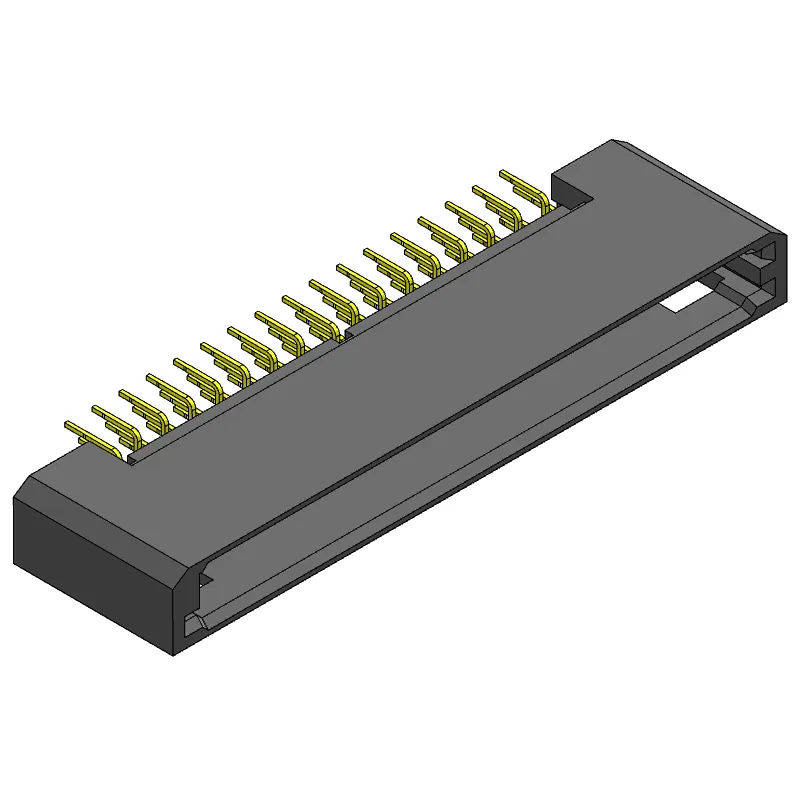

Pitch 1.27mm male chassis double row 2*34Pin frame port connector vertical PCB board (through hole)
Pitch 1.27mm male chassis double row 2*34Pin frame port connector vertical PCB board (through hole)

Pitch 1.27mm male chassis double row 2*34Pin frame port connector vertical PCB board (through hole)

Model NO.
GPEF202-3402A001R1SB
Pin pitch 1.27mm Male chassis double row total height 15.00mm 2*34P Contact end gold plated Solder board end tinned Straight pin Frame port connector perpendicular to PCB board (through hole)
Quantity:
  • Specification Code:GPEF202-3402A001R1SB
    Right angle connector　
    Pitch 1.27mm
    Number of rows Double row
    Number of PIN 68Pin
    Insulation material Nylon (high temperature resistant)
    Fire rating UL 94-V0
    Contact material copper alloy
    Plating Nickel plating on the bottom layer, gold on the surface contact end, matte tin on the solder end
    Rated current 1A/Pin
    Rated voltage 250V AC/DC
    Withstand voltage 500V DC for 1 minute
    Insulation impedance 1000MΩ min.
    Contact impedance 20mΩ max.
    Mechanical life100 times
    Welding temperature245±3℃/3~5 S
    Operating temperature -40℃~105℃
    Humidity level 1 level
    Mounting Perpendicular to PCB board (through-hole)
