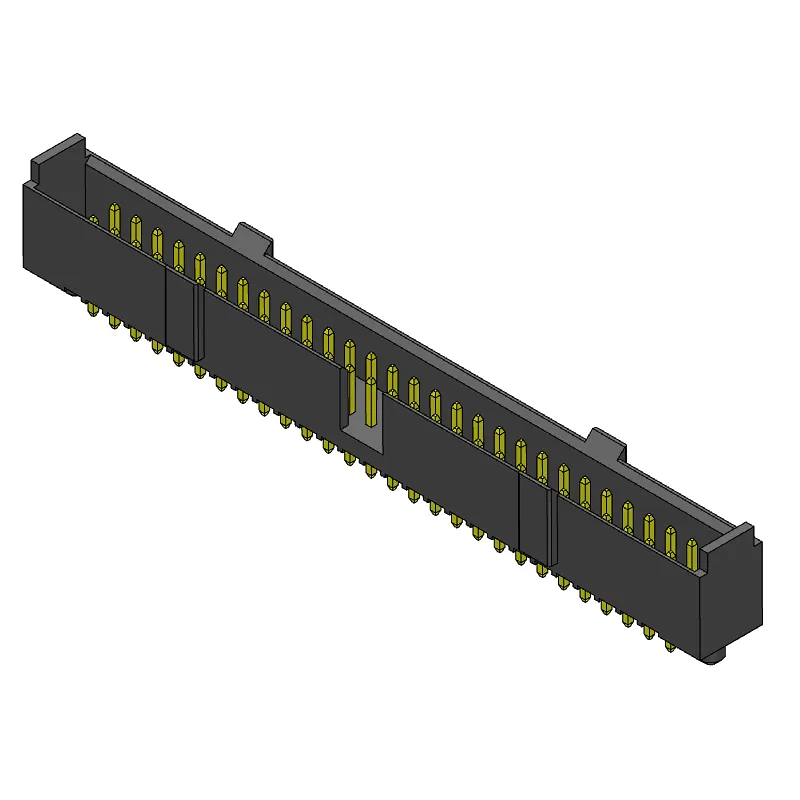

Pitch 2.00mm male chassis double row 2*28Pin frame port connector vertical PCB board (through hole)
Pitch 2.00mm male chassis double row 2*28Pin frame port connector vertical PCB board (through hole)

Pitch 2.00mm male chassis double row 2*28Pin frame port connector vertical PCB board (through hole)

Model NO.
GPFA267-2802B001C1ZC
Pin pitch 2.00mm Male chassis double row total height 8.30mm with positioning post 2*28P Gold plated at contact end Tin plated at solder board end Straight pin Frame port connector perpendicular to PCB board (through hole)
Quantity:
  • Specification Code:GPFA267-2802B001C1ZC
    Right Angle Connector　
    Pitch 2.00mm
    Number of rows Double row
    Number of PIN 56Pin
    Insulation material LCP (high temperature resistant)
    Fire rating UL 94-V0
    Contact material Copper alloy
    Plating Nickel plating on the bottom, gold on the contact end of the surface, matte tin on the solder end
    Rated current 2A/Pin
    Rated voltage 250V AC/DC
    Withstand voltage 500V AC for 1 minute
    Insulation impedance 1000MΩ min.
    Contact impedance 20mΩ max.
    Mechanical life100 times
    Welding temperature245±3℃/3~5 S
    Operating temperature -40℃~105℃
    Humidity level 1 level
    Mounting Perpendicular to PCB board (through-hole)
