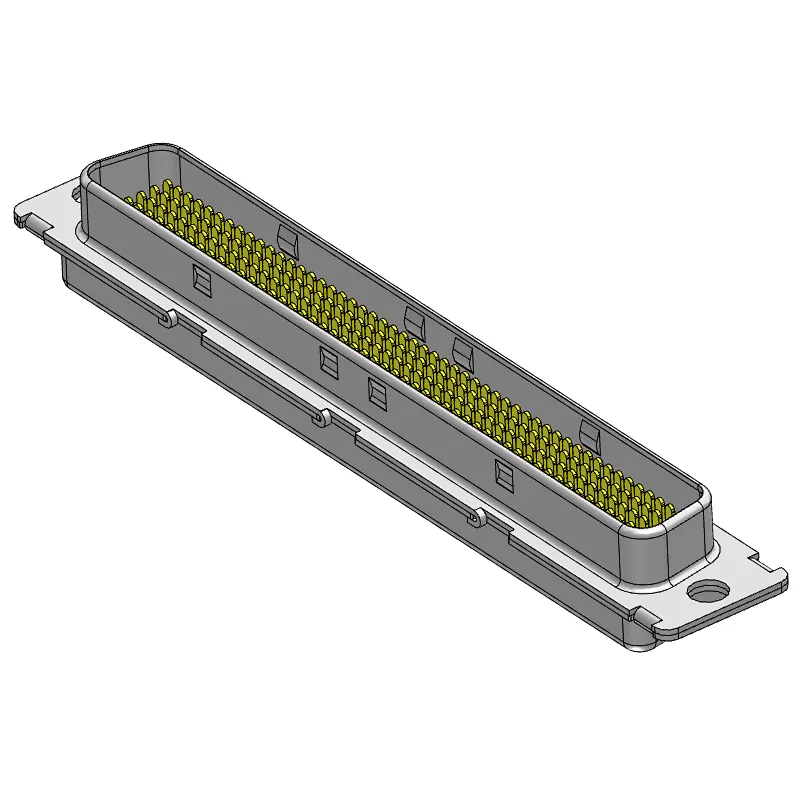

Pitch 1.27mm male chassis four-row 4*50Pin I/O series connector vertical PCB (through-hole)
Pitch 1.27mm male chassis four-row 4*50Pin I/O series connector vertical PCB (through-hole)

Pitch 1.27mm male chassis four-row 4*50Pin I/O series connector vertical PCB (through-hole)

Model NO.
GZEA401-5078A001C7SC
Pin pitch 1.27mm Male chassis four rows total height 10.20mm 4*50P Contact end gold plated Solder end tinned Straight pin I/O series connector perpendicular to the PCB (through hole)
Quantity:
  • Specification Code:GZEA401-5078A001C7SC
    Right Angle Connector - Male End　
    Pitch 1.27mm
    Number of rows four rows
    Number of PIN 250Pin
    Insulation material LCP (high temperature resistant)
    Fire rating UL 94-V0
    Contact material copper alloy
    Plating Nickel plating on the bottom, gold on the contact end of the surface, matte tin on the tin contact end
    Rated current 1A/Pin
    Rated voltage 150V AC/DC
    Withstand voltage 500V AC for 1 minute
    Insulation impedance 100MΩ min.
    Contact impedance 20mΩ max.
    Mechanical life5000 times
    Welding temperature245±3℃/3~5 S
    Operating temperature -20℃~80℃
    Humidity level 1 level
    Mounting parallel to PCB board (through-hole)
    Combined stacking height 22.0mm
