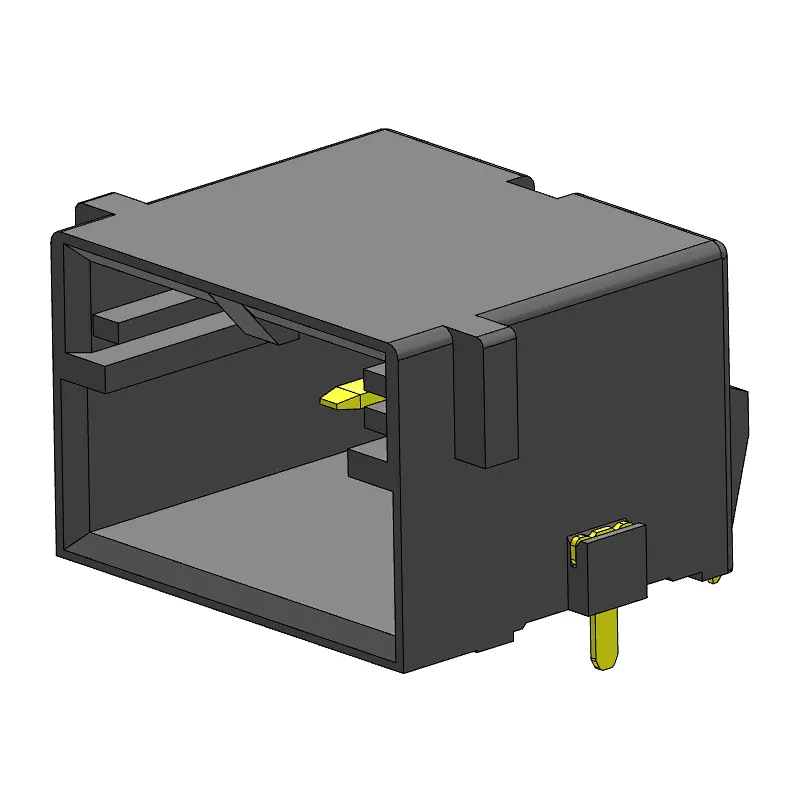

Pitch 4.00mm male chassis single row 1*4Pin frame port connector parallel to PCB board (through hole)
Pitch 4.00mm male chassis single row 1*4Pin frame port connector parallel to PCB board (through hole)

Pitch 4.00mm male chassis single row 1*4Pin frame port connector parallel to PCB board (through hole)

Model NO.
GPKB102-04K6F001C1ZD
Pin pitch 4.00mm male chassis single row total height 14.00mm with positioning post 1*4P tinned 90 degree curved pin Frame port connector parallel to PCB board (through hole)
Quantity:
  • Specification Code:GPKB102-04K6F001C1ZD
    90 degree bend angle connector　
    Pitch 4.00mm
    Number of rows Single row
    Number of PIN 4Pin
    Insulation material Nylon (high temperature resistant)
    Fire rating UL 94-V0
    Contact material copper alloy
    Plating Bottom layer nickel plated, surface layer matte tin
    Rated current 8A/Pin
    Rated voltage 250V AC
    Insulation resistance 5000MΩ min.
    Contact impedance30mΩ max.
    Withstand voltage 500V AC for 1 minute
    Mechanical life100 times
    Welding temperature245±3℃/3~5 S
    Operating temperature -55℃~125℃
    Humidity level 1 level
    Installation parallel to PCB board (through-hole)

Send Message

* clear input
*

Related Products

Pitch 2.20mm male chassis dual row 2*4Pin board-to-board connector vertical PCB (SMT)
Pitch 2.20mm male chassis dual row 2*4Pin board-to-board connector vertical PCB (SMT)
Model NO. GPZC214-0422B003C1ZF
Pitch 1.27mm male chassis double row 2*34Pin frame port connector vertical PCB board (through hole)
Pitch 1.27mm male chassis double row 2*34Pin frame port connector vertical PCB board (through hole)
Model NO. GPEF202-3402A001R1SB
Pitch 2.00mm male chassis dual row 2*28Pin frame port connector parallel to PCB board (through hole)
Pitch 2.00mm male chassis dual row 2*28Pin frame port connector parallel to PCB board (through hole)
Model NO. GPFB280-2802B001C1ZC
Pitch 3.30mm male chassis dual row 2*6Pin frame port connector parallel to PCB board (through hole)
Pitch 3.30mm male chassis dual row 2*6Pin frame port connector parallel to PCB board (through hole)
Model NO. GPZB211-0602A001R1ZC
Pitch 2.20mm male chassis double row 2*8Pin frame port connector vertical PCB board (through hole)
Pitch 2.20mm male chassis double row 2*8Pin frame port connector vertical PCB board (through hole)
Model NO. GPZA221-0801A001J6JA
Pitch 1.27mm male chassis four-row 4*50Pin I/O series connector vertical PCB (through-hole)
Pitch 1.27mm male chassis four-row 4*50Pin I/O series connector vertical PCB (through-hole)
Model NO. GZEA401-5078A001C7SC
Pitch 2.00mm male chassis double row 2*28Pin frame port connector vertical PCB board (through hole)
Pitch 2.00mm male chassis double row 2*28Pin frame port connector vertical PCB board (through hole)
Model NO. GPFA267-2802B001C1ZC

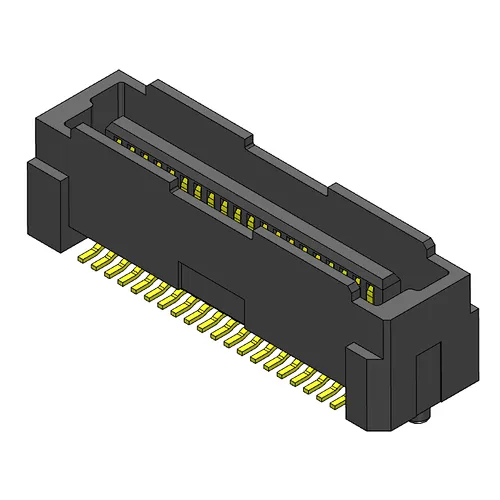

Pitch 0.80mm male chassis dual row 2*20Pin board-to-board connector vertical PCB (SMT)
