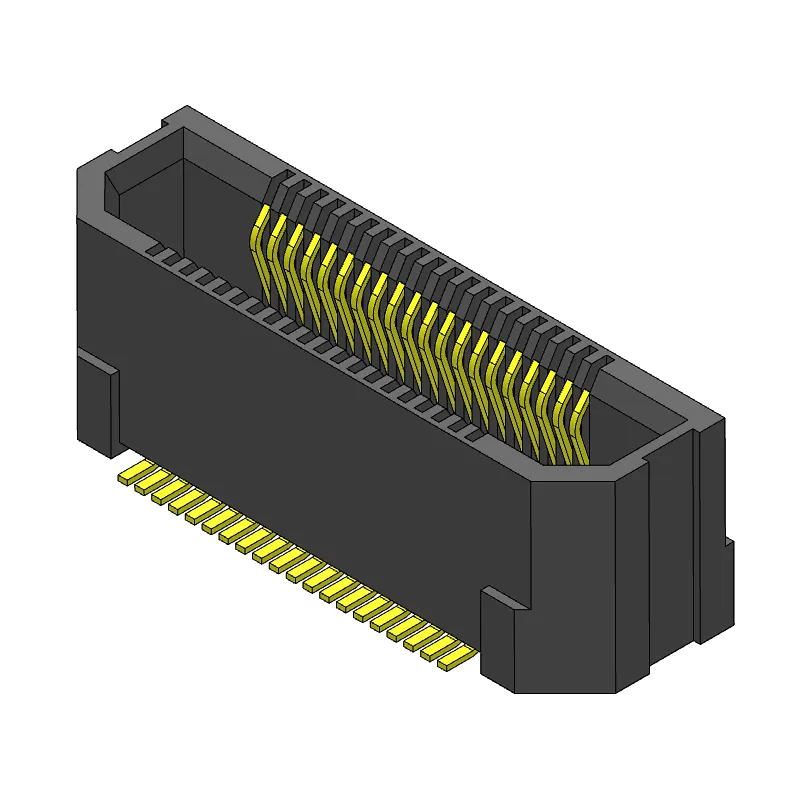

Pitch 0.50mm female chassis dual row 2*20Pin board-to-board connector vertical PCB (SMT)
Pitch 0.50mm female chassis dual row 2*20Pin board-to-board connector vertical PCB (SMT)

Pitch 0.50mm female chassis dual row 2*20Pin board-to-board connector vertical PCB (SMT)

Model NO.
CBAC230 -2002A001C1TD
Pin pitch 0.50mm female chassis double row total height 5.50mm 2*20P gold plated 90 degree curved pin Board to board connector perpendicular to PCB board (SMT)
Quantity:
  • Specification Code:CBAC230 -2002A001C1TD
    B To B Connector - Female End　
    Pitch 0.50 mm
    Number of rows Double row
    Number of PIN 40Pin
    Insulation material LCP (high temperature resistant)
    Fire rating UL 94-V0
    Contact material copper alloy
    Plating Nickel-plated bottom layer, gold surface layer
    Rated current 60V AC/DC
    Withstand voltage 200V AC for 1 minute
    Insulation impedance 500MΩ min.
    Contact impedance 30mΩ max.
    Mechanical life 100 times
    Welding temperature：260±5℃/5~15 S
    Operating temperature -40℃~105℃
    Humidity level 1 level
    Mounting Perpendicular to the PCB (SMT)
    Combined stacking height7.50mm
    Effective contact length1.00mm
