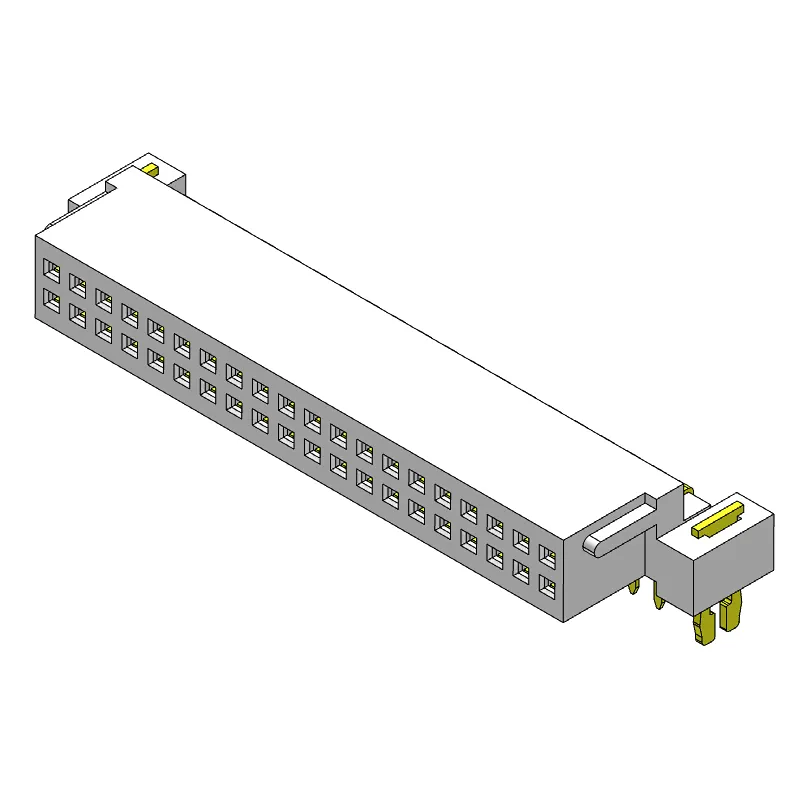

Pitch 2.00mm female chassis double row 2*20Pin Wafer series connectors parallel to the PCB (through-hole)
Pitch 2.00mm female chassis double row 2*20Pin Wafer series connectors parallel to the PCB (through-hole)

Pitch 2.00mm female chassis double row 2*20Pin Wafer series connectors parallel to the PCB (through-hole)

Model NO.
CWFB201-2001A001K2SC
Pin pitch 2.00mm female chassis double row total height 6.40mm with positioning harpoon 2*20P tinned 90 degree curved pin Wafer series connector parallel to PCB (through hole)
Quantity:
  • Specification Code:CWFB201-2001A001K2SC
    90 degree bend angle connector - female end　
    Pitch 2.00mm
    Number of rows Double row
    Number of PIN 40Pin
    Insulation material PBT (not high temperature resistant)
    Fire rating UL 94-V0
    Contact material copper alloy
    Plating Nickel plating on the bottom, gold on the contact end of the surface, tin on the contact end
    Rated current 3A/Pin
    Rated voltage 250V AC/DC
    Withstand voltage 1000V AC for 1 minute
    Insulation impedance 1000MΩ min.
    Contact impedance 30mΩ max.
    Mechanical life100 times
    Welding temperature245±3℃/3~5 S
    Operating temperature -25℃~85℃
    Humidity level 1 level
    Mounting parallel to PCB board (through-hole)
    Combined stacking height 16.80mm
    Effective contact length1.60mm
